SKU : MW302R

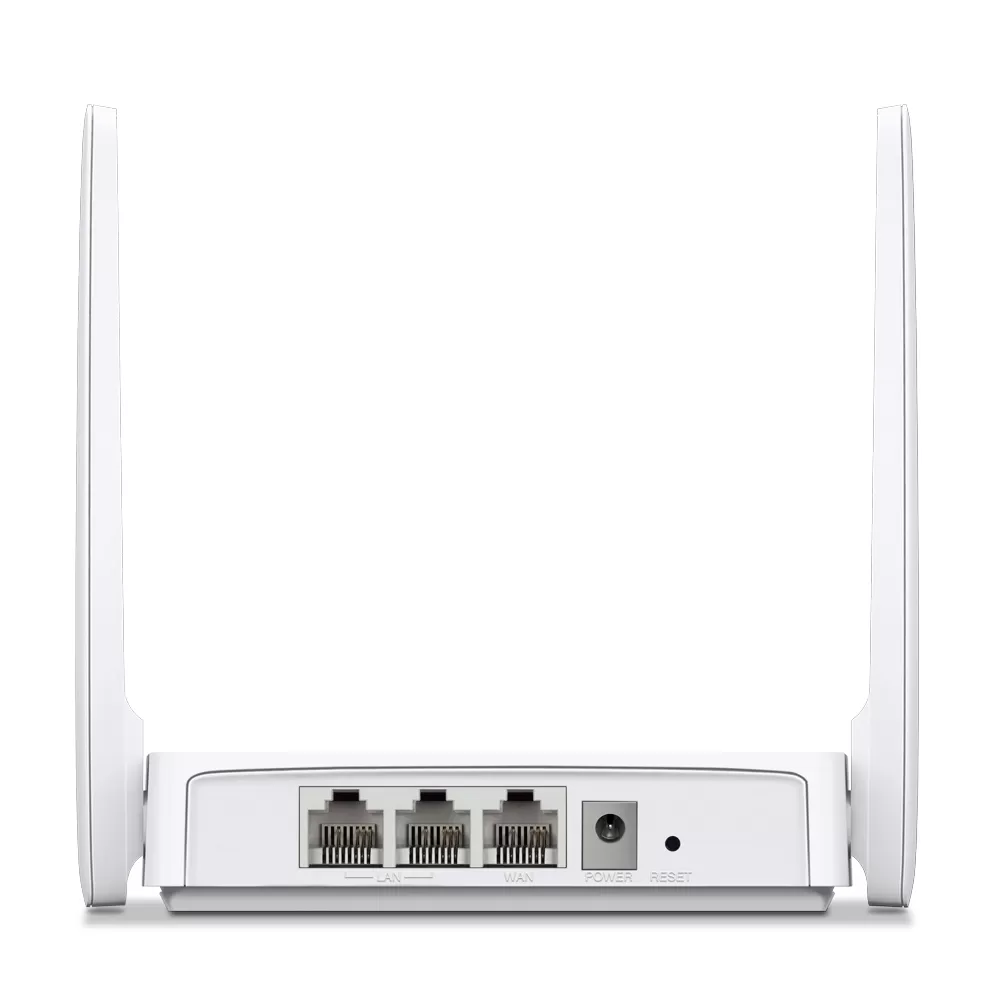

Fast Wi-Fi for Daily Life — MW302R provides fast and stable connections to meet all your network needs with speeds of up to 300 Mbps Broader Coverage — Equipped with high gain external antennas to deliver strong Wi-Fi signals to every corner of your home Multi-Mode — Four modes in one device to satisfy all application scenarios Easy installation — Intuitive webpage guides you through the setup process in minutes Active Parental Controls — Establish appropriate access policies to protect children with responsible, safe internet access Compatible with IPv6 (Internet Protocol version 6) WirelessWireless Standards IEEE 802.11b/g/n Frequency 2.4-2.4835GHz WiFi Speeds • 11n: Up to 300Mbps (Dynamic) • 11g: Up to 54Mbps (Dynamic) • 11b: Up to 11Mbps (Dynamic) Reception Sensitivity • 270M: -73dBm@10% PER • 130M: -75dBm@10% PER • 54M: -77dBm@10% PER • 11M: -90dBm@10% PER • 6 M: -94dBm@10% PER • 1 M: -96dBm@10% PER Transmission Power <20dBm (EIRP) Wireless Security WPA-PSK / WPA2-PSK Wireless Functions Enable/Disable Wireless Radio, WDS Bridging SoftwareWAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP Management Access Control, Local Management, Remote Management DHCP Server Port Forwarding Virtual Server, UPnP, DMZ Firewall Security IP and MAC Address Binding Protocols IPv4, IPv6 Guest Network 2.4GHz Guest Network HardwareDimensions 114 mm × 94 mm × 26 mm Button Reset Button External Power Supply 5V/0.6A Antenna Type 2 * 5dBi Ethernet Ports 2*10/100Mbps LAN Ports & 1*10/100Mbps WAN Port OthersPackage Contents 300Mbps Wireless N Router ( MW302R ) Power Adapter Quick Installation Guide Ethernet Cable Environment • Operating Temperature: 0°C~40°C (32°F~104°F) • Storage Temperature: -40°C~70°C (-40°F~158°F) • Operating Humidity: 10%~90% Non-Condensing • Storage Humidity: 5%~90% Non-Condensing More Info: https://www.mercusys.com/en/product/details/mw302r#overview
